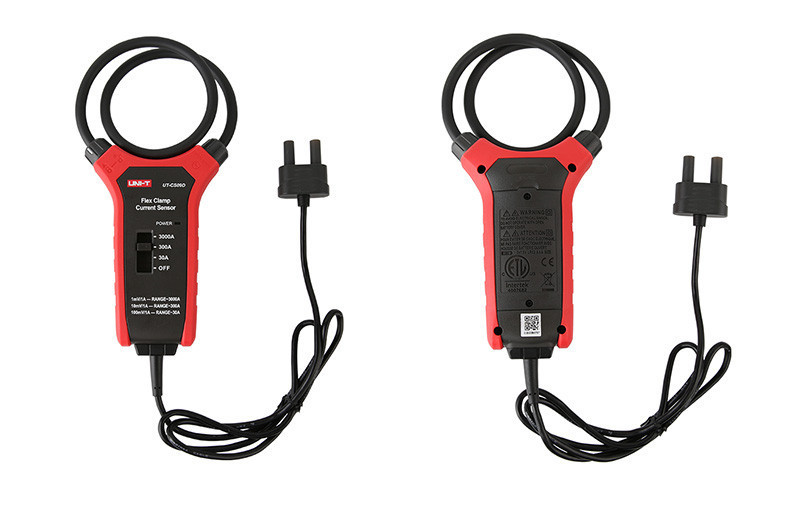

UNI-T UT-CS09D 3000A AC Current ยืดหยุ่น Clamp Meter Flex Clamp Sensor Amperemeter ความถี่ ใช้คู่กับ UT206B UT208B

(ราคาไม่รวมบิลภาษี! ใบเสร็จภาษีมูลค่าเพิ่มต้องชำระเพิ่ม 7%)

---------- รายละเอียดสินค้า ----------

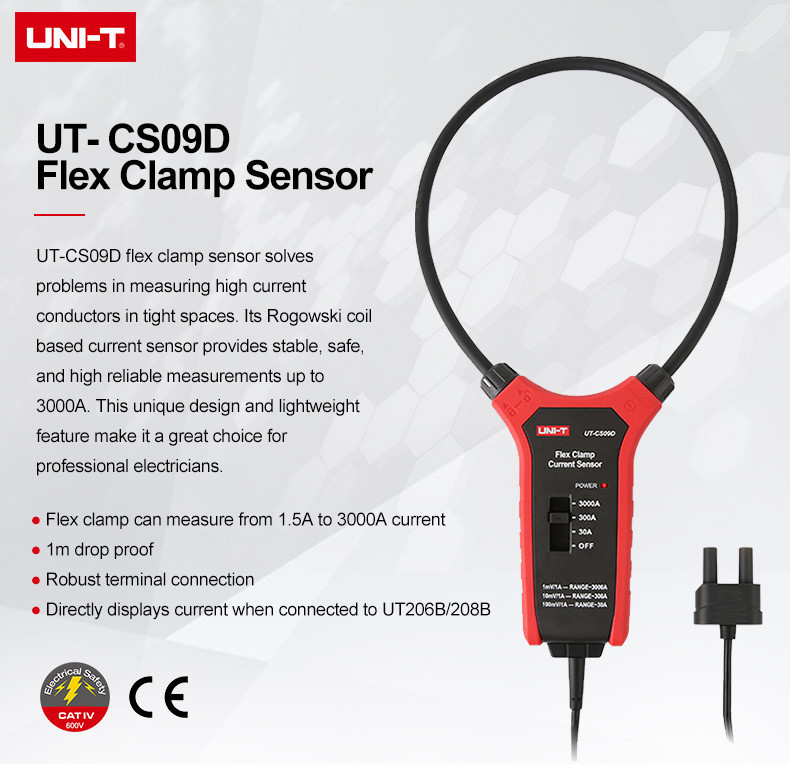

UT-CS09D flex clamp sensor solves problems in measuring high current conductors in tight spaces. Its Rogowski coil based current sensor provides stable, safe, and high reliable measurements up to 3000A. This unique design and lightweight feature make it a great choice for professional electricians.

Features of UT-CS09D Flex Clamp Sensor

Certificates: CE, UKCA, cETLus

● Flex clamp can measure from 1.5A to 3000A current

● 1m drop proof

● Robust terminal connection

● Directly displays current when connected to UT206B/208B

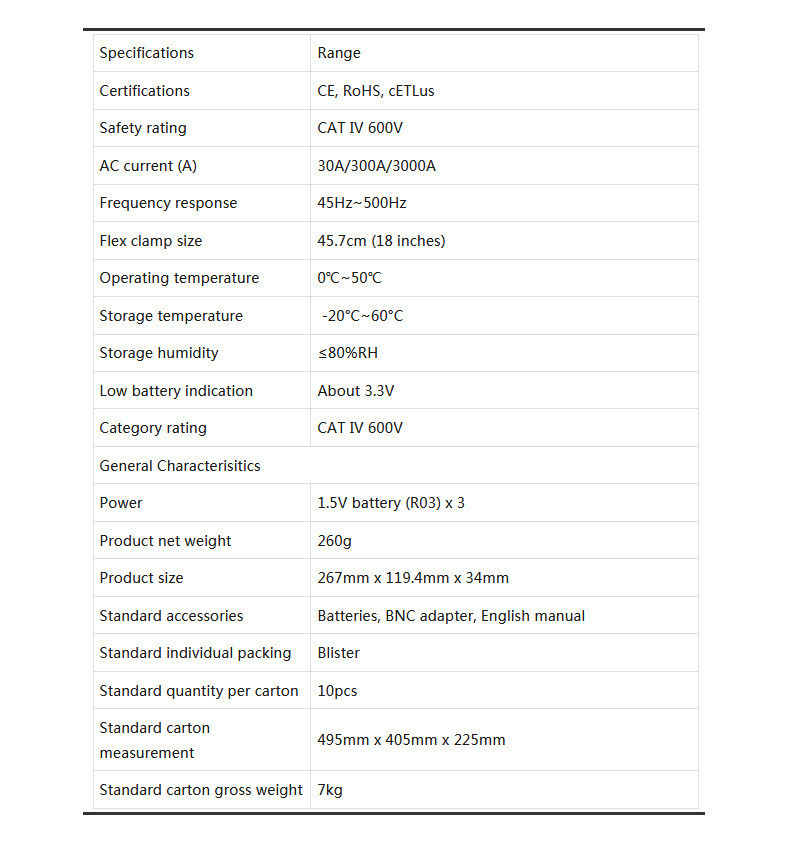

Specifications UT-CS09D

AC current (A) 30A/300A/3000A

Frequency response 45Hz~500Hz

Flex clamp size 45.7cm (18 inches)

Operating temperature 0℃~50℃

Storage temperature -20°C~60°C

Storage humidity ≤80%RH

Low battery indication About 3.3V

Category rating CAT IV 600V

General Characteristics

Power 1.5V battery (R03) x 3

Product net weight 260g

Product size 267mm x 119.4mm x 34mm

Standard accessories Batteries, BNC adapter, English manual
